Description
Are you ready to change it to a new level?

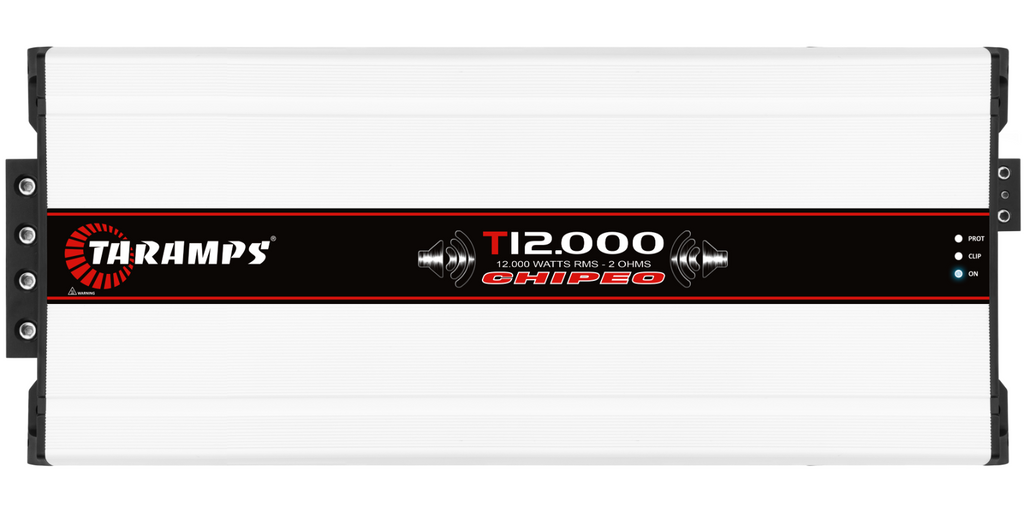

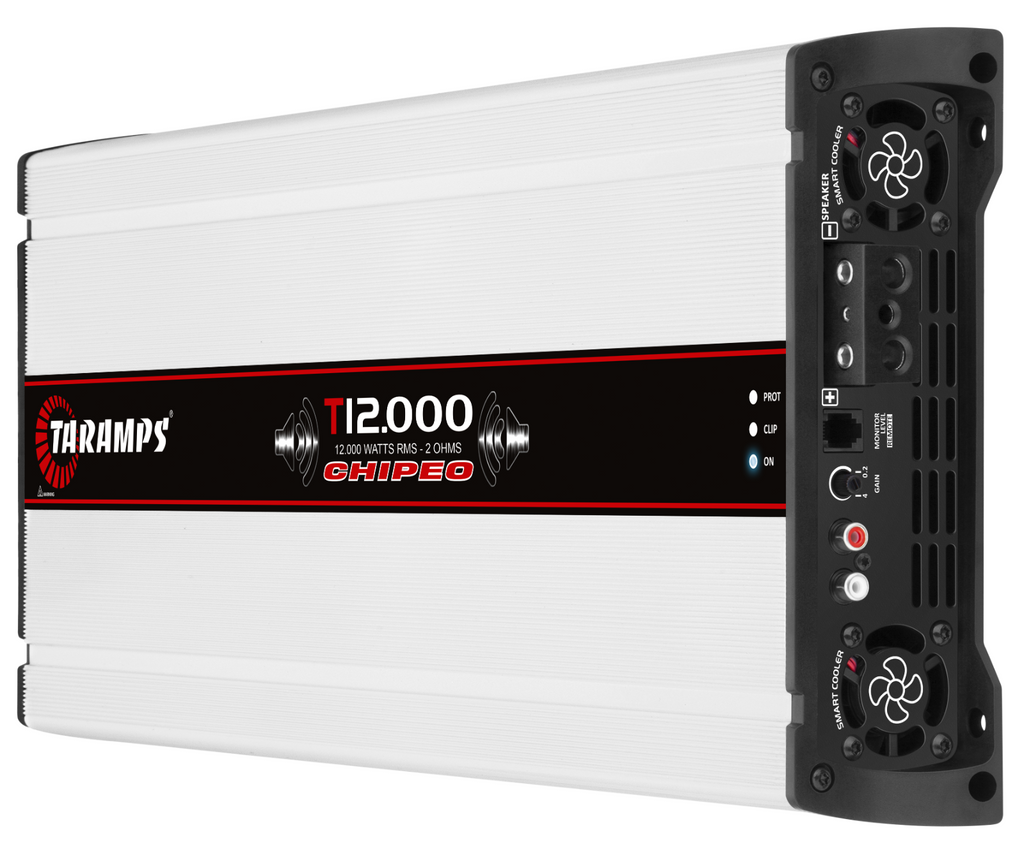

With the NEW T12000 Chipeo by Taramps, you���������������������������ll feel every beat, every sound and every detail of your favorite music like never before.
Available in 1 or 2 Ohm versions, this fantastic amplifier gives you 12300 WRMS at 12.6 Volts and can reach an incredible 13300 WRMS operating at 14.4 Volts.
Experience much more STRENGTH, QUALITY, EFFICIENCY and RESISTANCE, and take your sound experience to a new level.
Get ready for an intense and exciting musical journey!
With the NEW T12000 Chipeo by Taramps, you���������������������������ll feel every beat, every sound and every detail of your favorite music like never before.
Available in 1 or 2 Ohm versions, this fantastic amplifier gives you 12300 WRMS at 12.6 Volts and can reach an incredible 13300 WRMS operating at 14.4 Volts.
Experience much more STRENGTH, QUALITY, EFFICIENCY and RESISTANCE, and take your sound experience to a new level.
Get ready for an intense and exciting musical journey!
TECHNICAL������������������INFORMATION
| OPERATION CLASS | D |
|---|---|
| MINIMUM OUTPUT IMPEDANCE | 1 Ohm or 2 Ohms |
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | Pot������������������ncia Nominal @12,6VDC 1 OHM: 12300W RMS 2 OHMS: 7626W RMS 4 OHMS: --------------- Pot������������������ncia Nominal @13,8VDC 1 OHM: 13000W RMS 2 OHMS: 8060W RMS 4 OHMS: --------------- Pot������������������ncia Nominal @14,4VDC 1 OHM: 13300W RMS 2 OHMS: 7980W RMS 4 OHMS: --------------- |
| INPUT SENSITIVITY | 220mV ~ 4V Rms |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 5Hz ~ 5KHz (-3dB) |
| EFFICIENCY | 81% | 86% |
| INPUT IMPEDANCE | 10K Ohms |
| PROTECTION SYSTEM | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 5.60A |
| MAXIMUM MUSIC CONSUMPTION | 588A | 554A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 1176A | 1108A |
| DIMENSIONS (WXHXD) | 8.98" x 2.52" x 20.94" (228 x 64 x 532mm) |
| WEIGHT | 16.72lb ( 7.60Kg) |
| EAN | 7908706600063 |
