Description

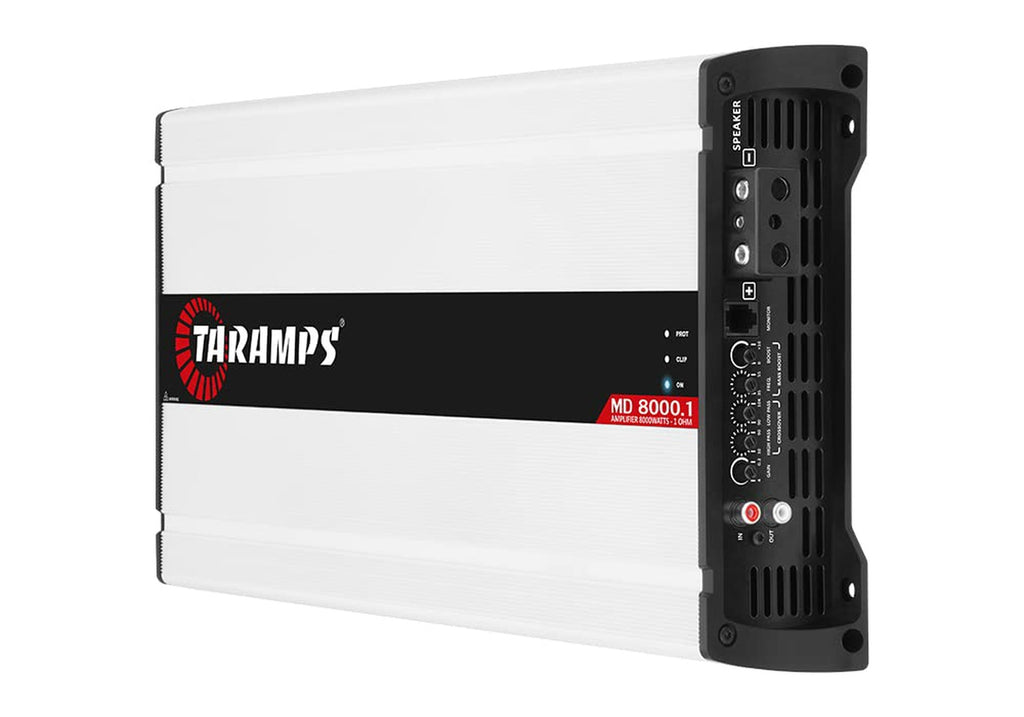

Taramps proudly presents the MD 8000.1. A 1 ohm version amplifier. Carefully designed with the latest technology, offering high power and performance for the most varied types of car audio systems, covering a wide frequency range, (10Hz ~8KHz (-3dB), being able to output 8000 Watts RMS. Welcome to the sound world of Taramps.
TECHNICAL������������������INFORMATION
| OPERATION CLASS | D |
|---|---|
| MINIMUM OUTPUT IMPEDANCE | 1 Ohm |
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 12,6 VDC - 1 OHM: 8000W RMS @ 12,6 VDC - 2 OHMS: 4800W RMS |
| INPUT SENSITIVITY | 0.22V ~ 4V |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 8KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 90Hz (-12dB/8������������������) Variable |
| CROSSOVER LOW PASS (LPF) | 90Hz ~ 10KHz (-12dB/8������������������) Variable |
| BASS BOOST | Freq.: 35Hz ~ 55Hz Boost: 0 ~10dB |
| EFFICIENCY | 82% |
| INPUT IMPEDANCE | 10K Ohms |
| PROTECTION SYSTEM | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection. |
| MINIMUM SUPPLY VOLTAGE | 9.5VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 2.90A |
| MAXIMUM MUSIC CONSUMPTION | 387A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 774A |
| DIMENSIONS (WXHXD) | 8.98" x 2.76" x 17.5" (228 x 70 x 446 mm) |
| WEIGHT | 12.3lb (5,60Kg) |
| EAN | 7898556848886 |
