Description

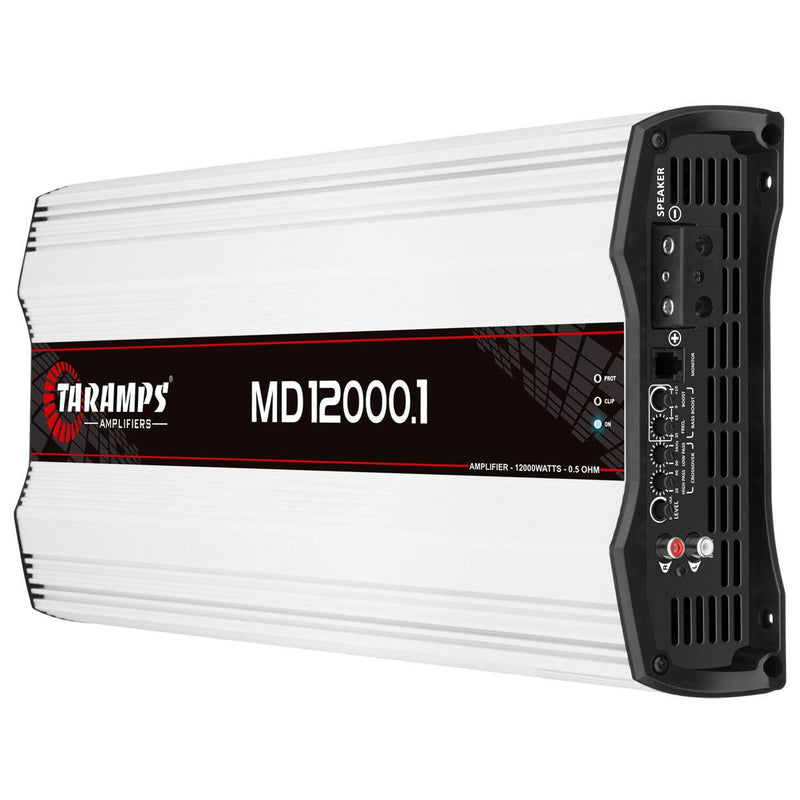

Taramps presents the amplifier module MD 12000.1 in the������������������0.5 ohm������������������version. It has been carefully designed with the highest technology, offering������������������high performance������������������and quality for most types������������������ of car audio systems, covering the������������������whole frequency range, in other words, it is a������������������FULL RANGE������������������module. It is a mono amplifier, has a channel with a maximum power of������������������12000 Watts RMS.������������������Welcome to the audio world by Taramps.
TECHNICAL������������������INFORMATION
| OPERATION CLASS | Class D |
|---|---|
| MINIMUM OUTPUT IMPEDANCE | 0.5 Ohm |
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 12.6 VDC - 0.5 OHM: 12000W RMS @ 12.6 VDC - 1 OHM: 7200W RMS |
| INPUT SENSITIVITY | 220mV |
| SIGNAL TO NOISE RATIO | >95dB |
| FREQUENCY RESPONSE | 10 Hz ~5 kHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10 Hz ~90 Hz (-12dB/8th) Variable |
| CROSSOVER LOW PASS (LPF) | 90 Hz ~5 kHz (-12dB/8th) Variable |
| BASS BOOST | Freq.: 35 Hz ~55 Hz Boost: 0 ~10dB |
| EFFICIENCY | 79% |
| INPUT IMPEDANCE | 15K ohms |
| PROTECTION SYSTEM | Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 3.6A |
| MAXIMUM MUSIC CONSUMPTION | 602.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 1205A |
| DIMENSIONS (WXHXD) | 8.98" x 2.75" x 21.65" (228 x 70 x 550mm) |
| WEIGHT | 17.52 lbs (7.95 kg) |
| EAN | 7898556845113 |
