Description

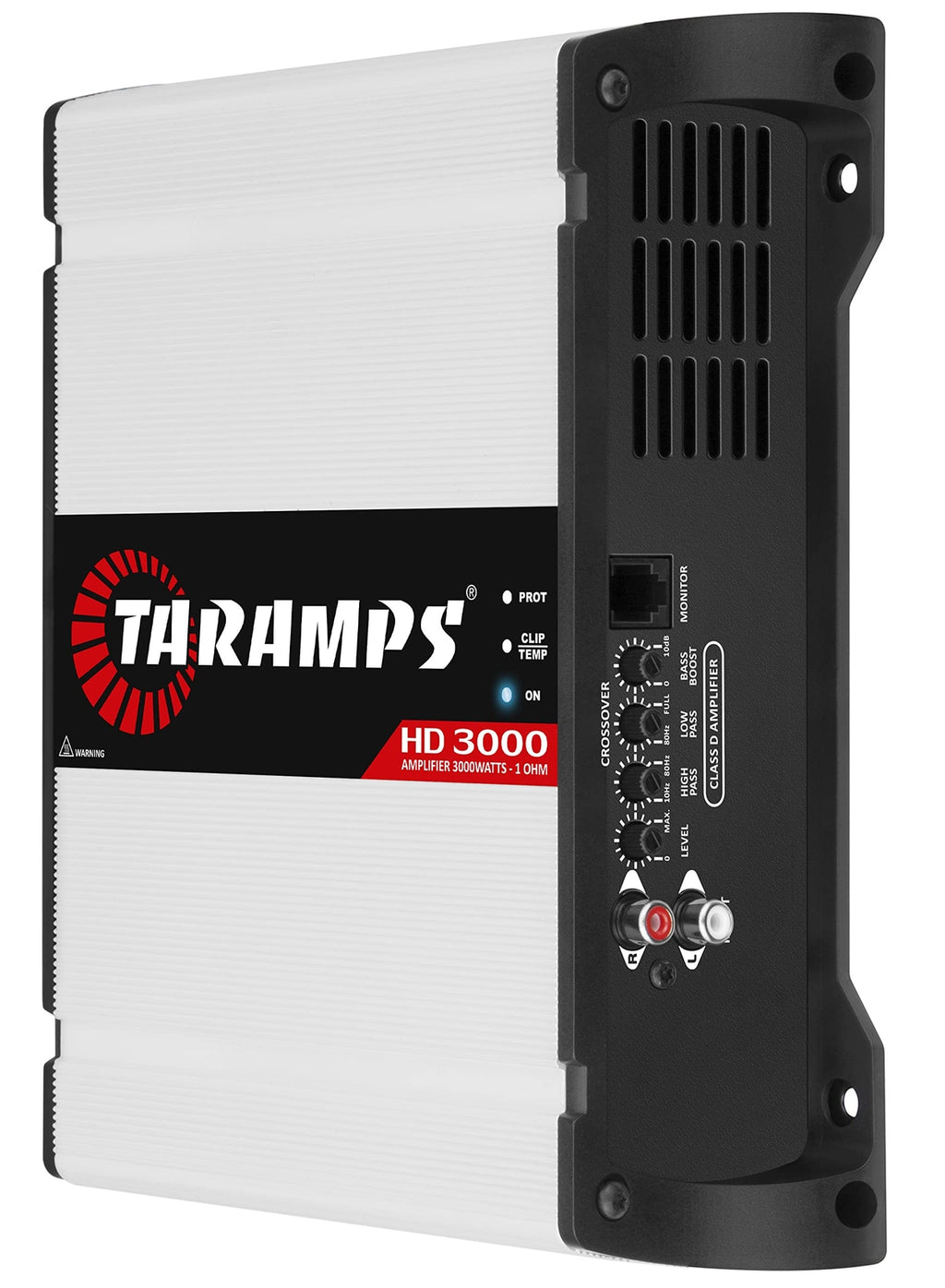

The Taramps HD 3000 is a 1 Ohm, single-channel amplifier capable of delivering������������������3000 Watts RMS������������������of power. It is compatible with all types of������������������speakers, drivers and tweeters.

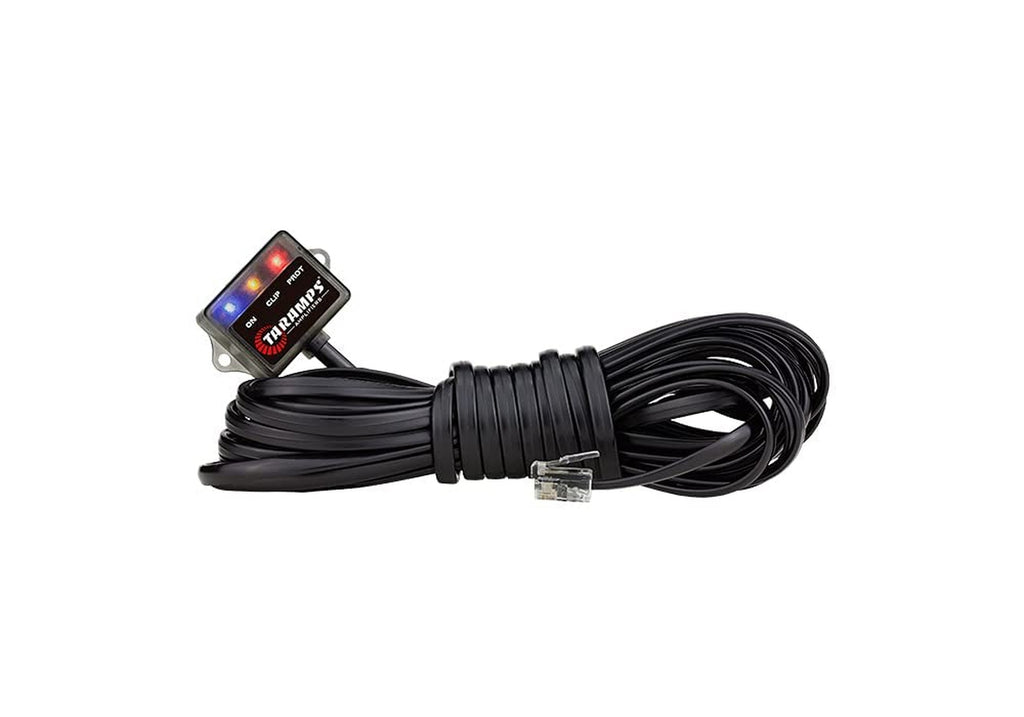

* This product comes with an M1 LED Monitor
TECHNICAL������������������INFORMATION
| OPERATION CLASS | Class D |
|---|---|
| MINIMUM OUTPUT IMPEDANCE | 1 Ohm |
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @12.6 VDC - 1 Ohm: 3000W RMS |
| INPUT SENSITIVITY | 0.22V ~ 4V |
| SIGNAL TO NOISE RATIO | >89dB |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10 ~ 80Hz (-12dB/8������������������) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz ~ Full (-12dB/8������������������) Variable |
| BASS BOOST | 0 ~ 10dB (50Hz) |
| INPUT IMPEDANCE | 10K Ohms |
| PROTECTION SYSTEM | Output Short-Circuit, High or Low Supply Voltage, Thermal Protection |
| MINIMUM SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM SUPPLY VOLTAGE | 16 VDC |
| CONSUMPTION AT REST | 1.5A |
| MAXIMUM MUSIC CONSUMPTION | @12.6VDC: 153A |
| DIMENSIONS (WXHXD) | 9.01" x 2.56" x 7.32" (229 x 65 x 186mm) |
| WEIGHT | 4.96lb (2.25Kg) |
| EAN | 7898556840903 |
