Description

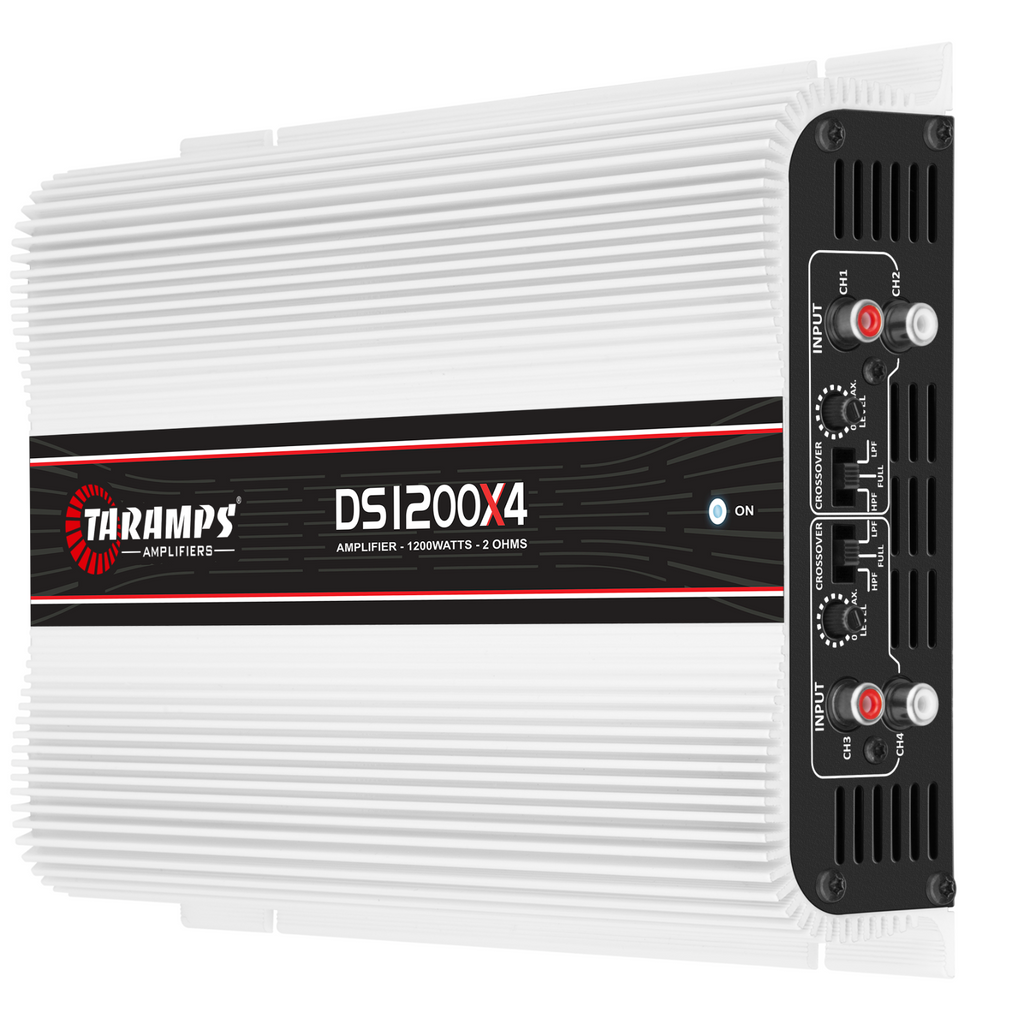

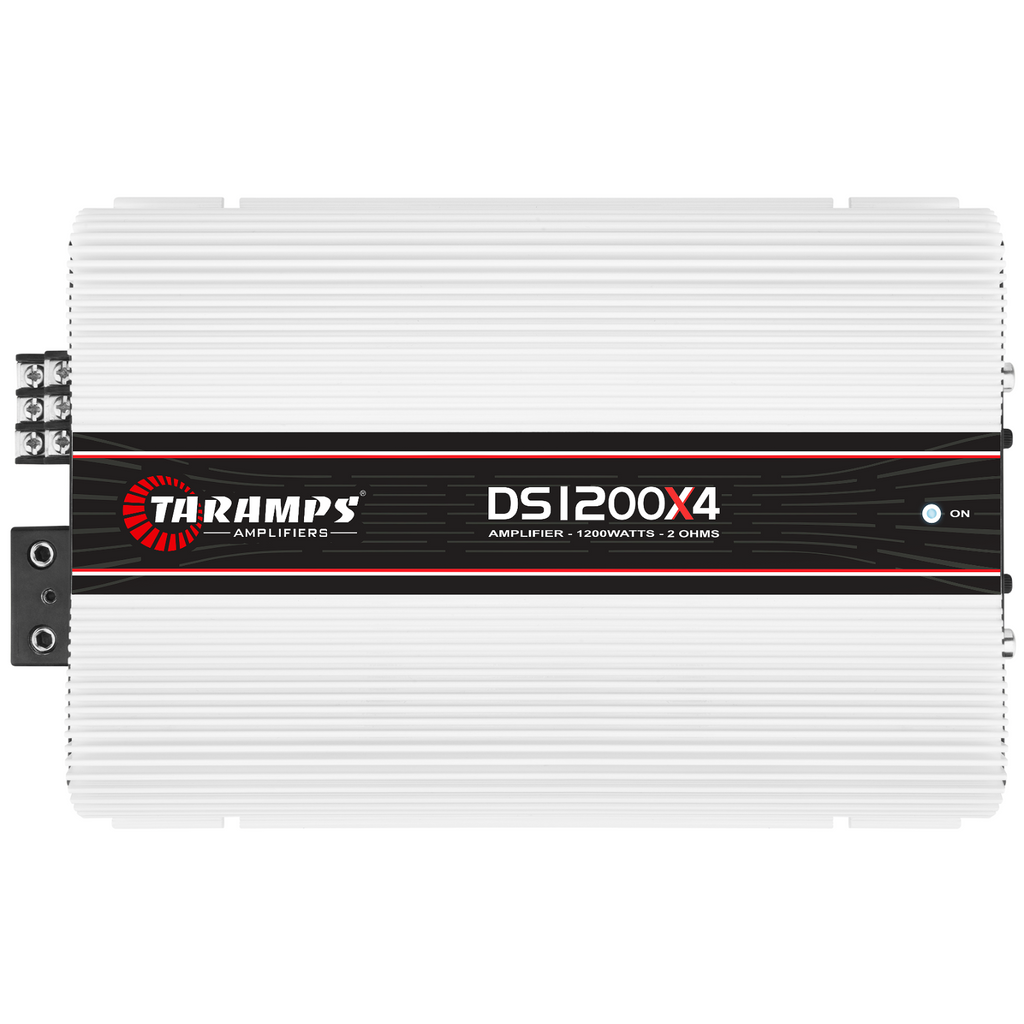

The DS 1200X4 is synonymous with a multichannel amplifier. It has 4 channels of 300 Watts RMS, with a maximum power of 1200 Watts RMS, at 2 ohms, and is compatible with any frequency, that is to say, it is a FULL RANGE amp.
Versatility, efficiency, and quality in a single product.
Technical information
| 2 Ohms VERSION | Nominal Power @12.6VDC 2 Ohms: 1200W RMS (4 x 300W RMS) 4 Ohms: 768W RMS (4 x 192W RMS) |
|---|---|
| Number of Channels | 04 |
| Input Sensitivity | 250mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 9Hz ~ 27KHz (-3dB) |
| Crossover high pass (HPF) | 90Hz (-12dB/8a) Fixed |
| Crossover low pass (LPF) | 90Hz (-12dB/8a) Fixed |
| Input Impedance | 18K Ohms |
| Output Impedance | 2 Ohms |
| protection system | Output overload |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption at rest | 1.8A |
| Maximum music consumption | 67.5A |
| Maximum consumption in sinusoidal signal | 135A |
| Dimensions (WxHxD) | 7.17" x 2.05" x 11.06" (182 x 52 x 281mm) |
| Weight | 4.62lb (2,1kg) |
| EAN | 7898556844130 |
