Description
Description

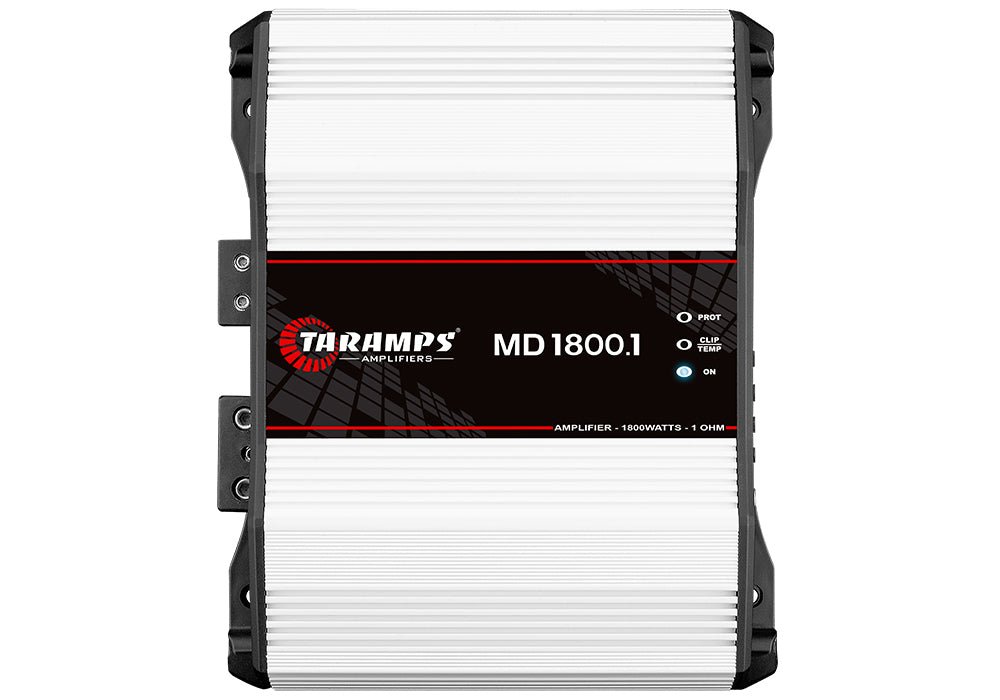

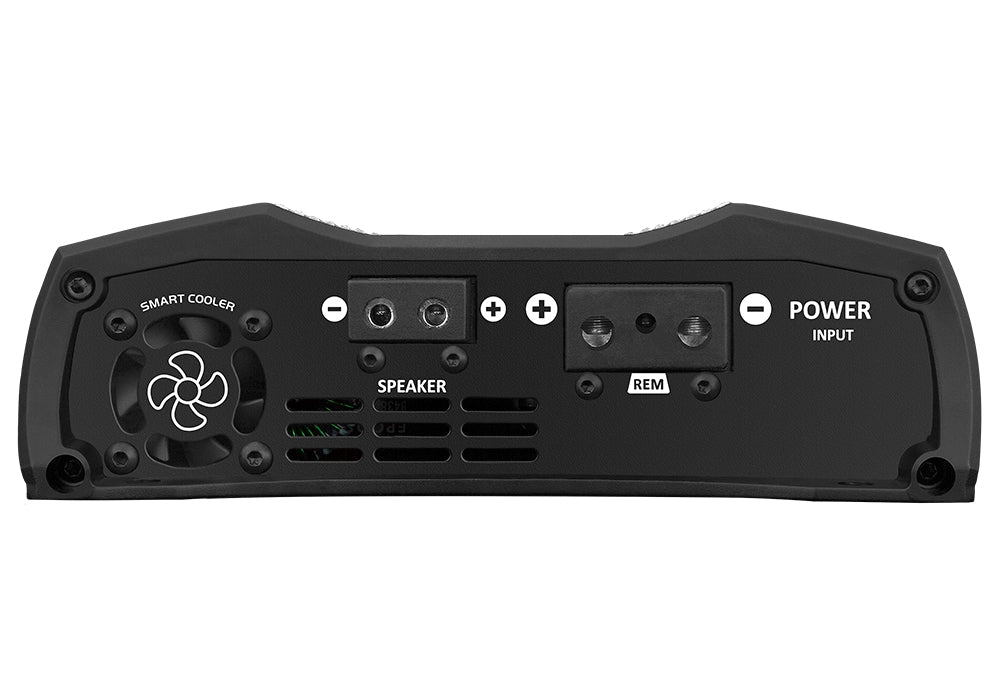

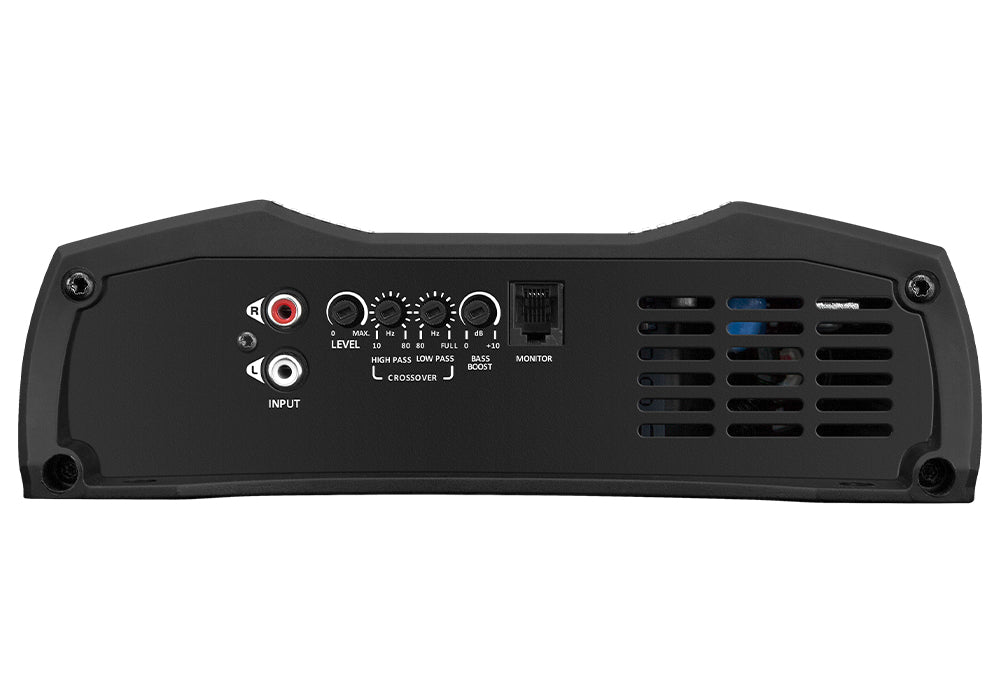

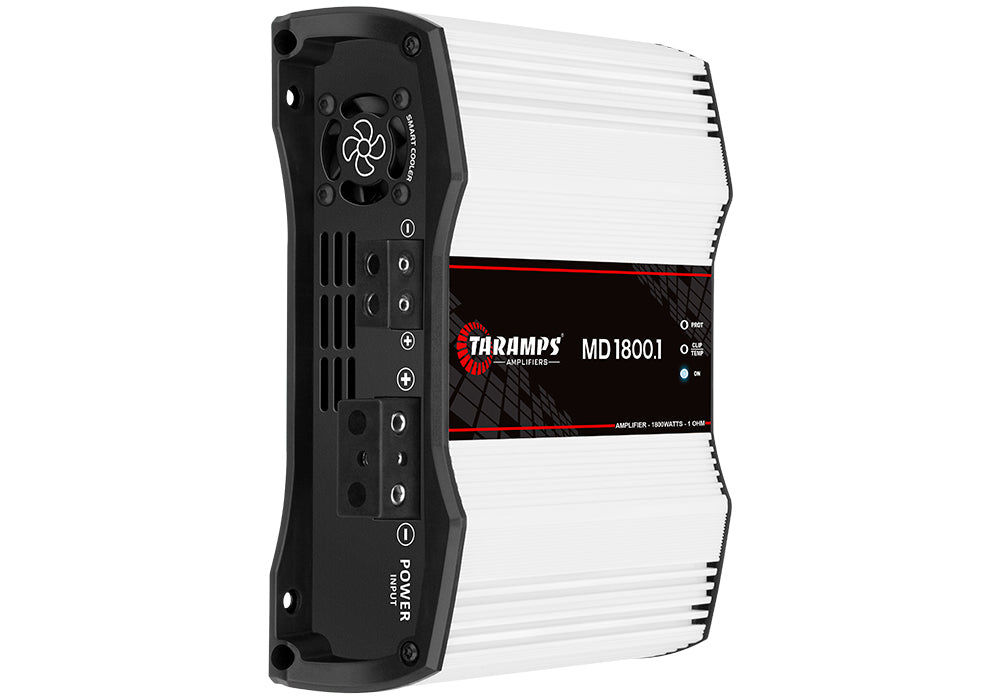

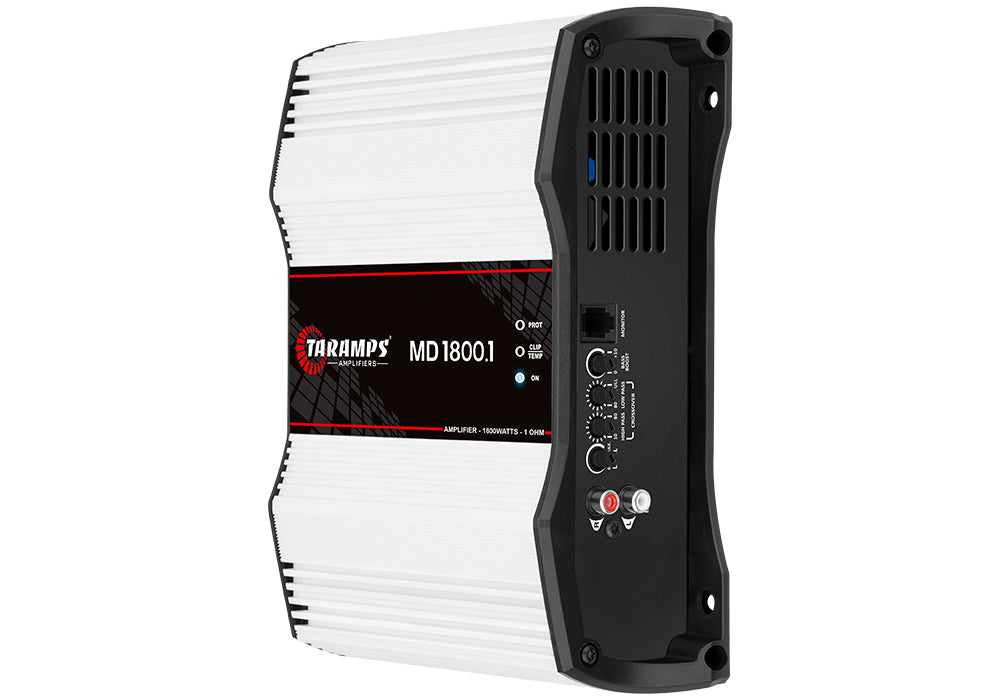

The Taramps MD 1800.1 in the������������������1-ohm������������������version has been carefully designed with the������������������highest technology, offering������������������high efficiency������������������and performance for various types of car audio systems. This amplifier covers the������������������whole frequency range, that is, it is a������������������FULL RANGE������������������module. It is classified as������������������mono������������������and has a channel with a maximum power of������������������1800-Watts RMS. Welcome to Taramps audio world.
Technical Information:
| Operation class | Class D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12.6 VDC - 1 OHM: 1800W RMS @ 12.6 VDC - 2 OHMS: 1410W RMS |
| Input Sensitivity | 220 mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 10Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8������������������) Variable |
| Crossover low pass (LPF) | 80Hz ~Full (-12dB/8������������������) Variable |
| bass boost | 0 ~ 10.5dB (50Hz) |
| Thermal Management | Smart Cooler (fan controlled by temperature or audio, with 3 speeds) |
| Efficiency | 78% |
| Input Impedance | 10k OHMS |
| Output Impedance | 1 OHM |
| protection system | Output Short / High/Low Supply Voltage / Thermal Protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.7 A |
| Maximum music consumption | 91 A |
| Maximum consumption in sinusoidal signal | 182 A |
| Dimensions (WxHxD) | 8.98" x 2.76" x 7.40" (228 x 70 x 188mm) |
| Weight | 4.80lb (2.18kg) |
| EAN | 7898556844390 |
