Description

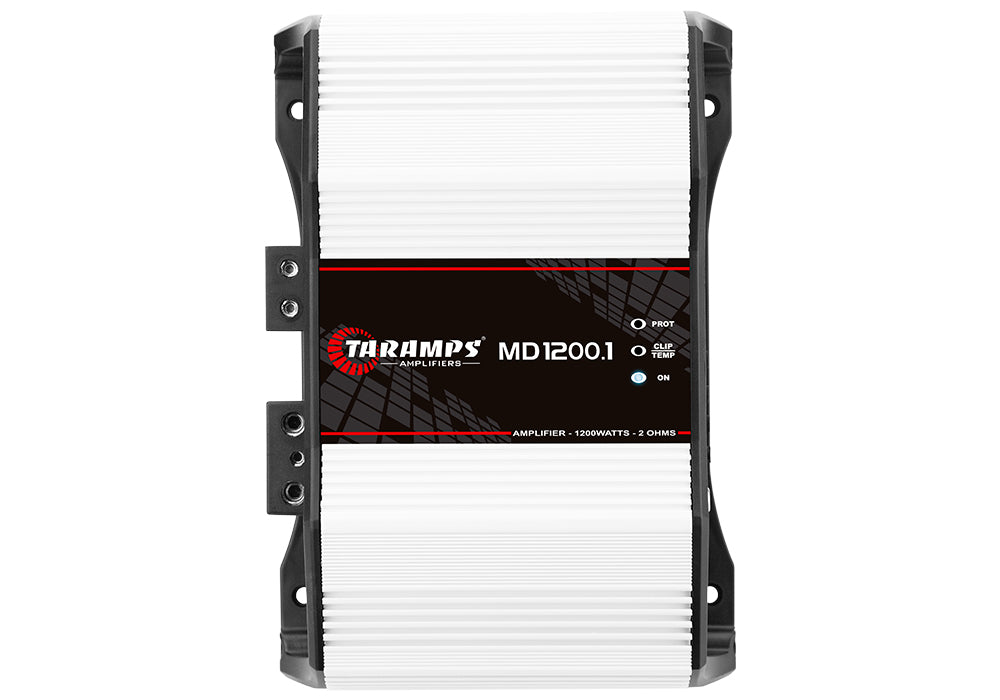

The Taramps MD 1200.1 in the 2-ohms version has been carefully designed with the highest technology, offering high efficiency and performance for various car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world.
Technical information
| 1 Ohm VERSION | Nominal Power @12,6VDC 1Ohm: 1200W RMS 2Ohms: 1000W RMS 4Ohms: N/A 8Ohms: N/A |
|---|---|
| 2 Ohms VERSION | Nominal Power @12,6VDC 1Ohm: N/A 2Ohms: 1200W RMS 4Ohms: 800W RMS 8Ohms: N/A |
| 4 Ohms VERSION | Nominal Power @12,6VDC 1Ohm: N/A 2Ohms: N/A 4Ohms: 1200W RMS 8Ohms: 855W RMS |
| Number of Channels | 01 |
| Input Sensitivity | 220mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 10Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| bass boost | 0 ~ 10.5dB (50Hz) |
| Thermal Management | Smart Cooler (Cooler activates based on temperature or audio at 3 speeds) |
| Input Impedance | 10K OHMS |
| Output Impedance | 1 Ohm | 2 Ohms | 4 Ohms |
| protection system | Output short-circuit, high/low voltage and thermal protection |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption at rest | 1,8A |
| Maximum music consumption | 60A |
| Maximum consumption in sinusoidal signal | 119A |
| Dimensions (WxHxD) | 8.98" x 2.76" x 6.22" (228 x 70 x 158 mm) |
| Weight | 3.97 lb (1.80 Kg) |
| EAN | 1 Ohm: 7898556844802 2 Ohms: 7898556844604 4 Ohms: 7898556844819 |
