Description
Description

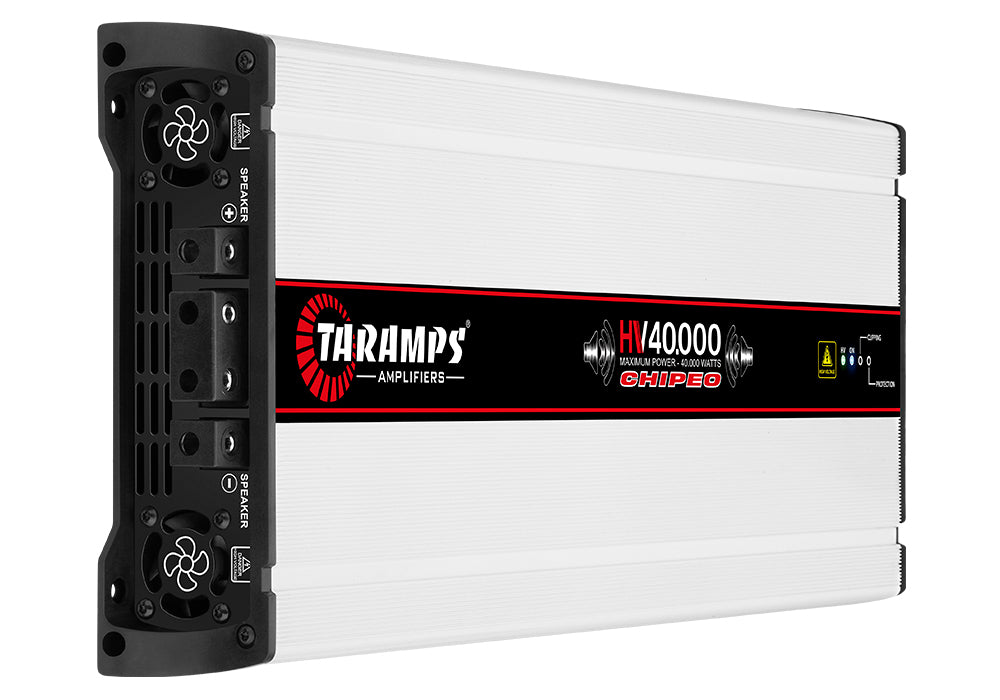

Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 40,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres and audio quality.
Technical Information:
| Number of Channels | (PT) 01 |
|---|---|
| Output Voltage | 227VDC @ 0.5 Ohm - 18 batteries |
| Input Sensitivity | (PT) 330mV ( Level 100%) @ 0.5 Ohm |
| Aux Input standard | (PT) 0.3% |
| Signal to Noise Ratio | >95dB |
| Frequency response | 10Hz ~ 15KHz (0.5dB) |
| Efficiency | 92% @ 0.5 Ohm (full power) |
| Input impedance | 27K Ohms |
| Protection system | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage Thermal protection** |
| Power Supply Voltage | 140VDC |
| Power Supply Voltage | 275VDC |
| Consumption at rest | 110mA |
| Maximum music consumption @ 0.5 Ohm | 91.5A |
| Maximum Sinusoidal Consumption @ 0.5 ohm (100Hz) | 183A |
| Dimensions (H x W x D) | 8.98" x 2.52" x 22.07" (228 x 64 x 561mm) |
| Weight | 12.54lb (5.70Kg) |
| Maximum output power @ 227 VDC- 0.5 Ohm* | 40.000W RMS |
| EAN | 7898556844727 |
