Description
We know that the demand for amplifiers that are compatible with original players has been growing every day. With that in mind, we created a version of the TS 400������������������4 that has a������������������high input with automatic activation. This makes the use of adapters unnecessary, which is ideal for this type of application.
As it has������������������400 watts of power distributed across 4 channels, that can be connected to create two bridged channels, this product can be used with a wide variety of models of������������������speakers, drivers and super tweeters.

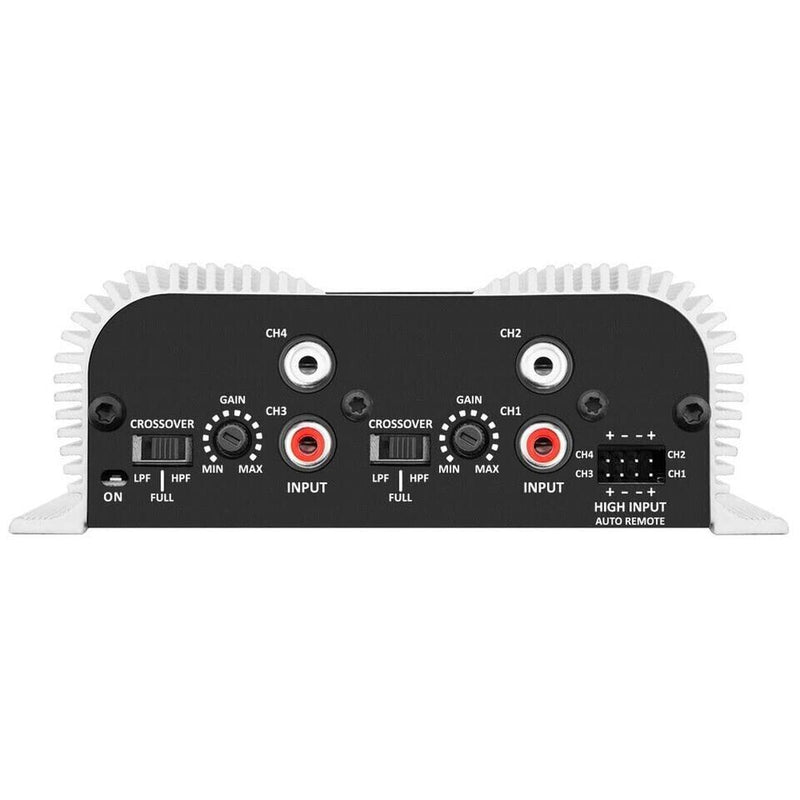

Beyond that, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full) that is characteristic of Taramps��������������������������� products.
All this and much more, so that your pleasure in listening to music becomes even greater.
As it has������������������400 watts of power distributed across 4 channels, that can be connected to create two bridged channels, this product can be used with a wide variety of models of������������������speakers, drivers and super tweeters.
Beyond that, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full) that is characteristic of Taramps��������������������������� products.
All this and much more, so that your pleasure in listening to music becomes even greater.
TECHNICAL������������������INFORMATION
| 2 OHMS VERSION | Nominal Power @13.8VDC 2 Ohms: 400W RMS (4 x 100W RMS) 4 Ohms: 252W RMS (4 x 63W RMS) 2 Bridged Channels 4 Ohms: 400W RMS (2 x 200W RMS) |
|---|---|
| NUMBER OF CHANNELS | 04 |
| INPUT SENSITIVITY | (RCA): 4V (min.) / 200mV (max.) (WIRE): >10V (min.) / 3V (max.) |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 18Hz ~ 30KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8������������������) Fixed |
| CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8������������������) Fixed |
| INPUT IMPEDANCE | 22K Ohms |
| OUTPUT IMPEDANCE | 2 Ohms |
| PROTECTION SYSTEM | Output Short Circuit |
| MINIMUM SUPPLY VOLTAGE | 8VDC |
| MAXIMUM SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 0.8A |
| MAXIMUM MUSIC CONSUMPTION | 16.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 33A |
| DIMENSIONS (WXHXD) | 5.43" x 1.93" x 5.16" (138 x 49 x 131mm) |
| WEIGHT | 1.43lb (0.65Kg) |
| EAN | 7908706600230 |
